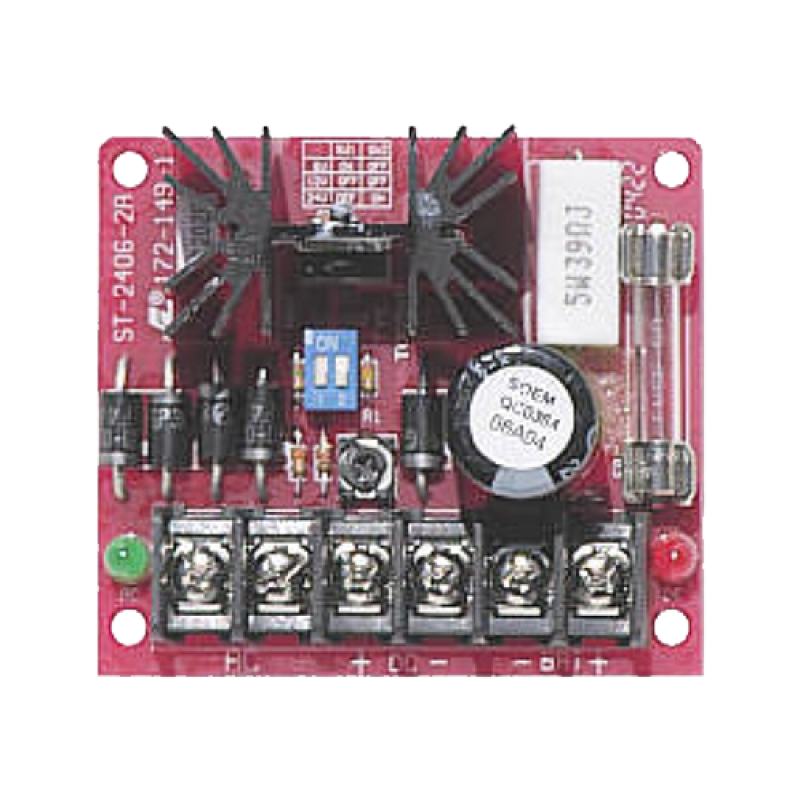

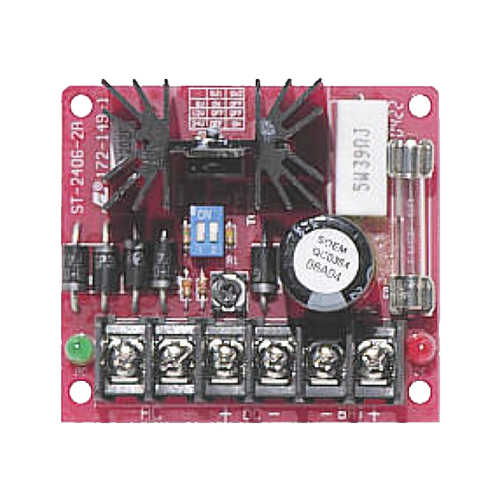

Fuente 12VDC@1.5A ó 24VDC@0.75A Seco-Larm (ST-2406-2AQ)

Fuente 12VDC@1.5A ó 24VDC@0.75A Seco-Larm (ST-2406-2AQ) Zoom
Marca: Seco-Larm
Modelo: ST-2406-2AQ
Disponibilidad: Llámanos
Máximo por compra: 50
Cantidad: - +
Etiquetas: Línea
Descripción Fecha Tamaño
Manual de Usuario* 06/02/2026 263.8KB
Ficha Técnica* 06/02/2026 383.71KB
* Para clientes registrados únicamente.
  • Selectable (6, 12, 24 VDC) voltage output
  • Regulated and filtered output voltage
  • Short circuit protection
  • Thermal protection and compensation
  • Built-in backup battery charger
  • Switches to backup battery automatically in case of power loss
  • Fused protection for battery charger
  • 2 LEDs to indicate AC power input and DC power output status
  • Compatible with lead acid or gel-type rechargeable battery
  • Reverse polarity protected
  • Low operating temperature
  • Battery leads and foam tape included
  • Compact design



Specifications

Operating Voltage 6, 12, 24 VDC
Current (Continuous) 1.5A
Current (Peak) 2.0A
Output Current 6V = 100mA, 12V = 220mA, 24V =450mA
Operating Temperature -4°~149° F (-20°~65° C)
Dimensions 2-7/8"x2-1/2"x1-3/8" (73x64x35mm)



*Las especificaciones técnicas, características, diseños y colores pueden cambiar sin previo aviso.



General
Tipo Transformadores y Fuentes
