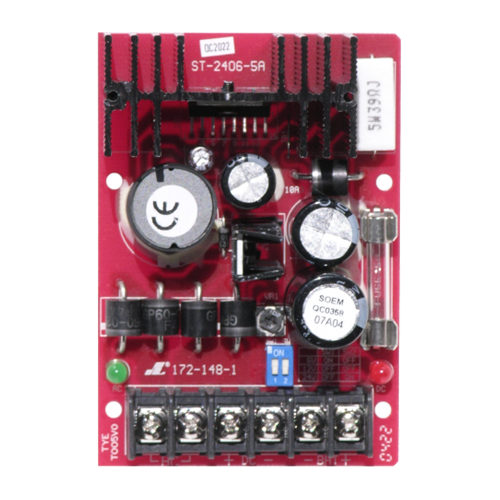

Fuente 6VDC, 12VDC ó 24VDC@5A Seco-Larm (ST-2406-5AQ)

Fuente 6VDC, 12VDC ó 24VDC@5A Seco-Larm (ST-2406-5AQ) Zoom
Marca: Seco-Larm
Modelo: ST-2406-5AQ
Disponibilidad: 20+
Máximo por compra: 100
Cantidad: - +
Etiquetas: Línea
Descripción Fecha Tamaño
Ficha Técnica* 04/04/2024 656.06KB
Manual de Usuario* 04/04/2024 263.8KB
* Para clientes registrados únicamente.
  • Selectable (6, 12, 24 VDC) voltage output
  • Regulated and filtered output voltage
  • Short circuit protection
  • Thermal protection and compensation
  • Built-in backup battery charger
  • Switches to backup battery automatically in case of power loss
  • Fused protection for battery charger
  • 2 LEDs to indicate AC power input and DC power output status
  • Compatible with lead acid or gel-type rechargeable battery
  • Reverse polarity protected
  • Low operating temperature
  • Battery leads and foam tape included
  • Compact design



Specifications

Operating Voltage 6, 12, 24 VDC
Current (Continuous) 4.0A
Current (Peak) 5.0A
Output Current 6V = 100mA, 12V = 220mA, 24V = 450mA
Master Fuse 5 Amp
Low Battery Cutoff When battery voltage is <20 % of set ouput voltage
Dimensions 3-3/4" x 2-7/8" x 1-9/16" (95 x 73 x 40 mm)
Status LEDs AC Input: Green, DC Output: Red/Blue (Blue indicates 24V)
Operating Temperature -4°~149° F (-20°~65° C)
General
Tipo Transformadores y Fuentes
